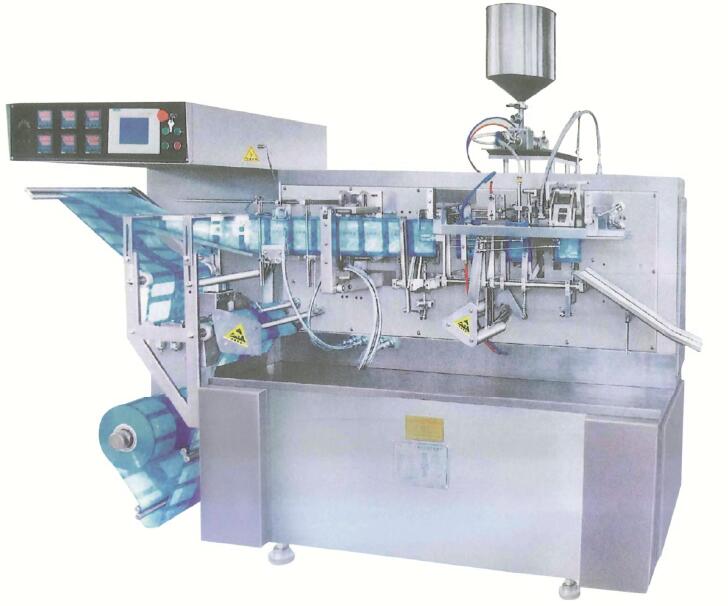

OCL-180水平式制袋(自立袋)全自動包裝機 Horizontal bag making (stand-up pouch) automatic packaging machine

全國服務熱線:

159-1595-6886(微信同號)

簡介:Introduction

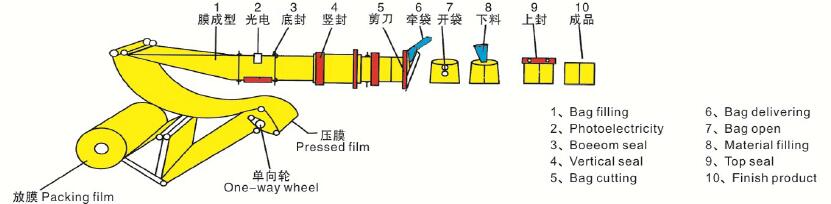

本機是我司引進歐洲同類機型先進技術,改良后的新一代全自動卷膜成型包裝機.集制袋、計量、灌裝、封口于一體??筛鶕?jù)客戶的不同要求實現三邊封,四邊封以及自立袋制袋二另外可以自動沖易撕邊,充掛孔。配套不同的下料系統可以滿足粉劑、顆粒、液劑等物料的包裝要求。本機制袋、封口和充填是相對獨立的系統。通過機械聯動及可編程序控制器(PLC)進行協調聯動,滿足不同袋子尺寸的要求。

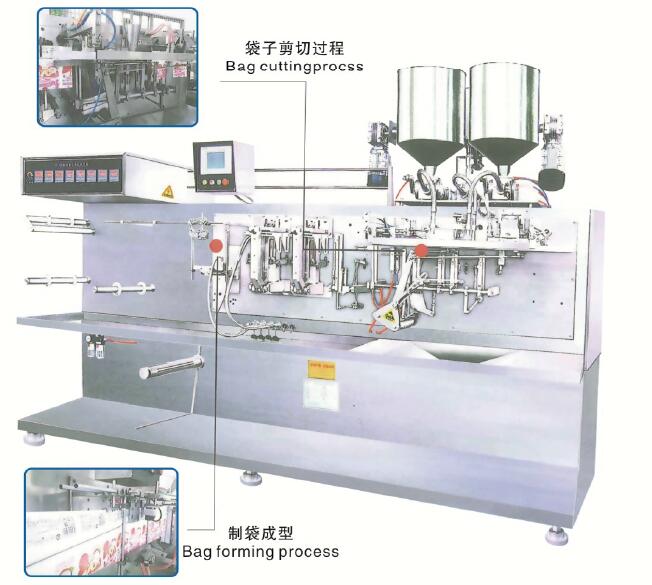

This machine is equipped with advanced technology of Europe similar product to created a new generation of full automatic pouch form fill seal packing machine. combine the bag forming, measuring,filling,sealing action as one body. We can achieve 314 sides bag seal, stand up pouch seal requirement. Easy tear and notching was available. With difference filling system it can be using in powder, granule, liquid etc material. The bag formjng and filling system are total separate. Using mechanical linkage and PLC control to meet difference bag size packing requirement

適用范圍:Scope of application

適合醫藥.食品,日化,化工,農藥等行業的粉劑,顆粒,塊狀,液體.膏體。醬類等物料之自動包裝,自動完成制袋,計量(或多次充填),整形,封口??裳b配打碼,充氣,放卡。

Suitable for medicine, foodstuff, commodity, chemical pesticideindustries of powder, granule, liquid, aste and jam material. To achieve full automaticpackage like forming, easuring, filling and sealing process. Date printing,air inflation was available

機器優勢:Machine advantage

1、運行平穩、速度快、制袋完美、耗能低。

    Operate steadily, fast speed, bag making faultlessly, low power consumption.

2、機器可實現多工位需求。

    Multi material can be filling in one pouch.

3、采用PLC控制,包裝速度快,運行平穩,故障率低、耗能低。

    By PLC control system, packing speed is more fast, operate more steadily. low failure rate and loe pawer

    consumption.

4、獨立的物料充填裝置,有效避免細粉物料的反撲、反濺;確保封口質量。

    Independent material filling device, powder splash could be avoided to insure the sealing effect.

5、三邊封口、四邊封口任意選擇,制袋平整外型美觀。

    The machine can make 3 sides seal and 4 sides seal,sealing effect smooth and beautiful.

6、配置不同的充填機構??梢詫崿F(xiàn)粉劑、液體、顆粒、醬類的不同包裝。

    Using difference filling system can packing material like:liquid,powder granule and paste etc

技術參數:Technical Parameter

袋型Sachet type制袋 horizontal pouch三/四邊封3/4 sides
雙聯袋Duplex bagpre-make bag
自立袋stand up pouch自立袋stand up pouch
袋子尺寸范圍最大尺寸Max.Size180mm(W)x225mm(L)
Sachet size range最小尺寸Min.Size85mm(W)x100mm(L)
計量范圍 Filling Rate50-400m1(custamized)
包裝速度 Packfng Speed40-60 bagslmin
主機功率 Electricity Pawer5kw
電源要求 Working Voltage380V/50Hz
卷膜直徑 Film Roll Diameter500 mm
最大膜寬 Max Film Width450mm
耗 氣 量 Air Consumption0.7m3/min
機器尺寸 Machine dimension2320x980x1550 mm
機器重量 Machine Weieht1300kg
