OCL-140S 水平式雙給袋包裝機 Horizontal double-to-bag packaging machine

全國服務熱線:

159-1595-6886(微信同號)

主要特點:Main feature

1、粉料物料計量包裝系統有水平式給袋包裝機與下料系統組成;

1. The powder material metering and packaging system consists of a horizontal bag-feeding packaging machine and a blanking system;

2、放袋槽放袋方便簡單,配備自動壓袋裝置;

2. The bag-putting slot is convenient and simple for bag-putting, equipped with automatic bag-pressing device;

3、配置進口壓力感應裝置,達到不下料不封的效果,節約包裝袋;

3. Equipped with imported pressure sensing device to achieve the effect of no blanking and no sealing, saving packaging bags;

4、雙給袋包裝系統,包裝速度更快、重量更準確,采用高質量的配件,保持機器的持久穩定;

4. Double-feed bag packaging system, faster packaging speed, more accurate weight, and high-quality accessories to keep the machine stable;

5、采用彩色觸摸式顯示屏,簡單操作,多功能設計;

5. Adopting color touch screen, simple operation and multifunctional design;

6、機器采用不銹304L外觀,碳鋼機架部分與部分配件做耐酸、耐鹽防腐處置層加工。

6. The machine adopts the appearance of stainless 304L, and the carbon steel frame part and some accessories are processed with acid-resistant, salt-resistant and anti-corrosion treatment layer.

7、選材要求:大部分配件以模具化生產成型,主要材料選用304不銹與氧化鋁。

7. Material selection requirements: Most of the accessories are formed by mold production, and the main materials are 304 stainless steel and alumina.

8、可選配各種打碼、噴碼、排氣、沖孔系統;

8. Various coding, coding, exhaust, and punching systems are optional;

適用范圍:Scope of application

本機包裝類型:Native packaging type

01.固體類:糖果、花生、青豆、開心果、膨化食品等固體類物料的包裝。

01. Solids: packaging of solid materials such as candies, peanuts, green beans, pistachios, puffed foods, etc.

02.顆粒類:豆類、結晶味精、結晶鹽、顆粒狀藥品、膠囊、種子、化學調料、雞精、瓜子、農藥、肥料、飼料等顆粒類物料的包裝。

02. Granules: beans, crystalline monosodium glutamate, crystalline salt, granular medicines, capsules, seeds, chemical seasonings, chicken essence, melon seeds, pesticides, fertilizers, feed and other granular materials.

03.粉劑類:調味品、奶粉、素食粉、五谷粉、葡萄糖、生粉、面粉等粉劑物料的包裝。

03. Powders: packaging of condiments, milk powder, vegetarian powder, grain powder, glucose, corn powder, flour and other powder materials.

04.液體類:醬油、米醋、果汁、飲料等液體類物料的包裝。

04. Liquids: packaging of liquid materials such as soy sauce, rice vinegar, fruit juice, and beverages.

05.醬體類:番茄醬、辣椒醬、豆瓣醬等醬體類物料的包裝。

05. Sauce body: packaging of ketchup, chili sauce, bean paste and other sauce body materials.

本機技術參數:Technical parameters of this machine

包裝速度 Packaging speed30-90bags/min
總功率 Total power5KW(單主機 Single host)
包裝尺寸 Package Size100-250mm/90-140mm(L*W)
供電電源 Power supply380V
整機重量 Total Weight2000KG
包裝容量 Packing capacity10g-400g
耗氣量 Air consumption0.7m3/min

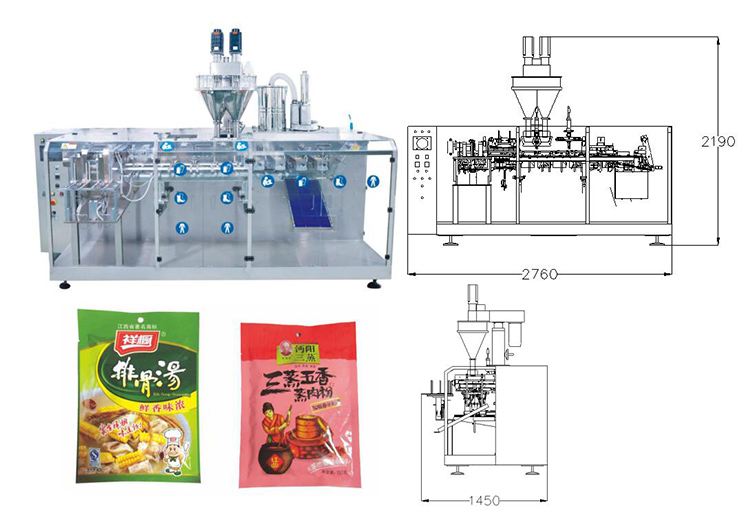

外形尺寸 Dimensions2760*1550*1350mm
包裝袋類型 Bag type自立袋、四邊封袋、拉鏈袋、手提袋、紙袋等各種預制袋
Various prefabricated bags such as self-supporting bags, four-side sealing bags, zipper bags, handbags, paper bags, etc.

本機主要配置:Main configuration of this machine

01.氣動元件:Pneumatic components
給袋汽缸:To bag cylinder臺灣亞德客AirTAC Taiwan
其他汽缸:Other cylinders臺灣亞德客AirTAC Taiwan
氣動電磁閥:Pneumatic solenoid valve臺灣亞德客AirTAC Taiwan
真空壓力表:Vacuum pressure gauge臺灣亞德客AirTAC Taiwan
氣管、接頭、三聯體:Trachea, joint, triplet臺灣亞德客AirTAC Taiwan
02.電氣元件:Electrical components
顯示屏(觸摸屏):Display (touch screen)臺灣威倫Weilun
編碼器:Encoder日本歐姆龍Omron
變頻器:Frequency converter深圳金鐘Shenzhen Admiralty
控制開關、按鈕、繼電器:Control switches, buttons, relays法國施耐德Schneider
光電檢測元件:Photoelectric detection element奧托尼克斯Autonics
PLC:億維Edimensional
中間繼電器:Intermediate relay美國ABBAmerican ABB

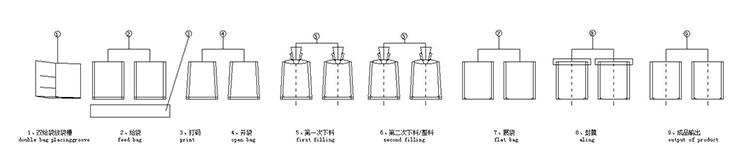

包裝工藝流程圖:Packaging process flow chart
